Ballistics - Fix and improve B_12Gauge_Slug_NoCartridge, add Slug 300gr.

[Laid3acK]

When merged this pull request will:

• Fix and update B_12Gauge_Slug_NoCartridge, solve Slug trajectory in-game.
• Fix AA12 from Western Sahara CDLC shoots far below its crosshair when using any attached sights #11191
• Remove Scopes - Stop applying scope offsets to secondary muzzles #11280, has no effect on slug trajectory in-game and remove the possibility to play with Type 115 secondary weapon (50BW) with scope.
• Add Slug 300gr (higher engagement distance that 438gr).
• Update Western Sahara compatibility: add XMS SG, fix B_12Gauge_Pellets_Submunition MV 900m/s in-game, add ACE_ScopeHeightAboveRail and ACE_RailHeightAboveBore.
• Update Western Sahara XMS SG shotgun realistic name SIX-12 (thanks to rekterakathom for his source).
• Muzzle velocities (m/s) in-game (AB 15°C 59°F, ICAO ASM):

	3.21 DB	3.21 AB	PR DB	PR AB
CZ 581	450	459	485, 606	485, 606
CZ 581 Short	450	425	436, 545	436, 545
AA12 (WS)	450	434	426, 533	426, 533
MSBS Grot SG	450	414	419, 524	419, 524
XMS SG (WS)	450	450	419, 524	419, 524

Note:

• Short range ammunition, zeroing 100m or less recommended.
• Slug works as it should be with shotguns after some tests with dispersion = 0;, except Western Sahara XMS SG. Maybe 3D model issue ?
  • Example with XMS SG iron sight (vanilla game, CBA and Debug Reticle script):
    • XMS SG iron sight primary weapon not centered.
    • XMS SG iron sight secondary weapon not centered.
• Same that .50BW, no range card and no scope turrets for Six-12 Slug,
  same that .50BW, "Slug 300gr" added in AtragMx GunList in case ACE3 players would use Six-12 with scope (switch to primary weapon for scope turrets and open AtragMx range card (RC) for values).
  Reseting AtragMx GunList to add eventually the new ammunition for Six-12.

Additional informations:

• Slug ACE_muzzleVelocities - ACE_barrelLengths curve:

• Slug 438gr terminal velocities, airFriction -0.006:

• Slug 300gr terminal velocities, airFriction -0.00212:

IMPORTANT

• If the contribution affects the documentation, please include your changes in this pull request so the documentation will appear on the website.
• Development Guidelines are read, understood and applied.
• Title of this PR uses our standard template Component - Add|Fix|Improve|Change|Make|Remove {changes}.

[Laid3acK]

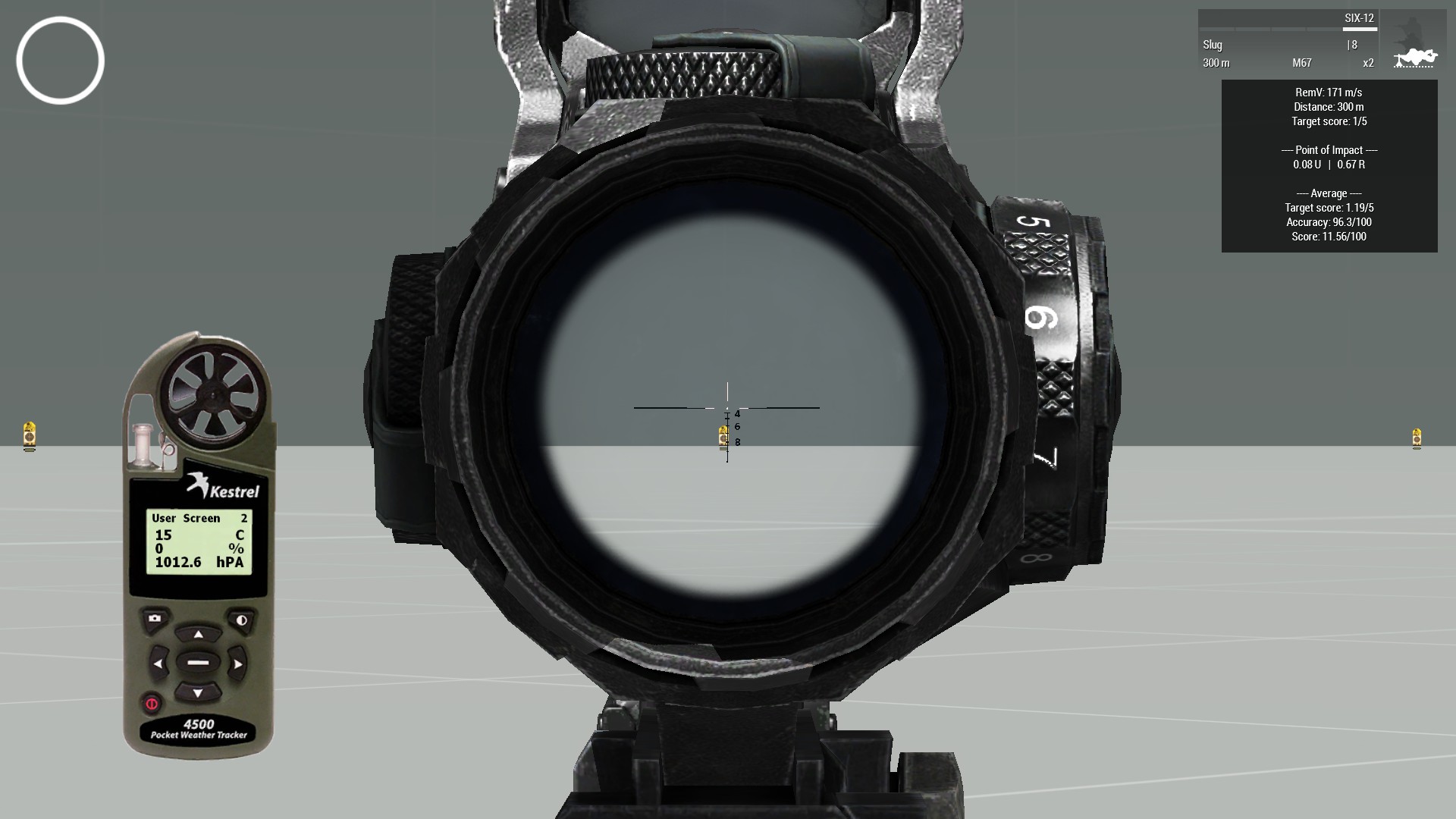

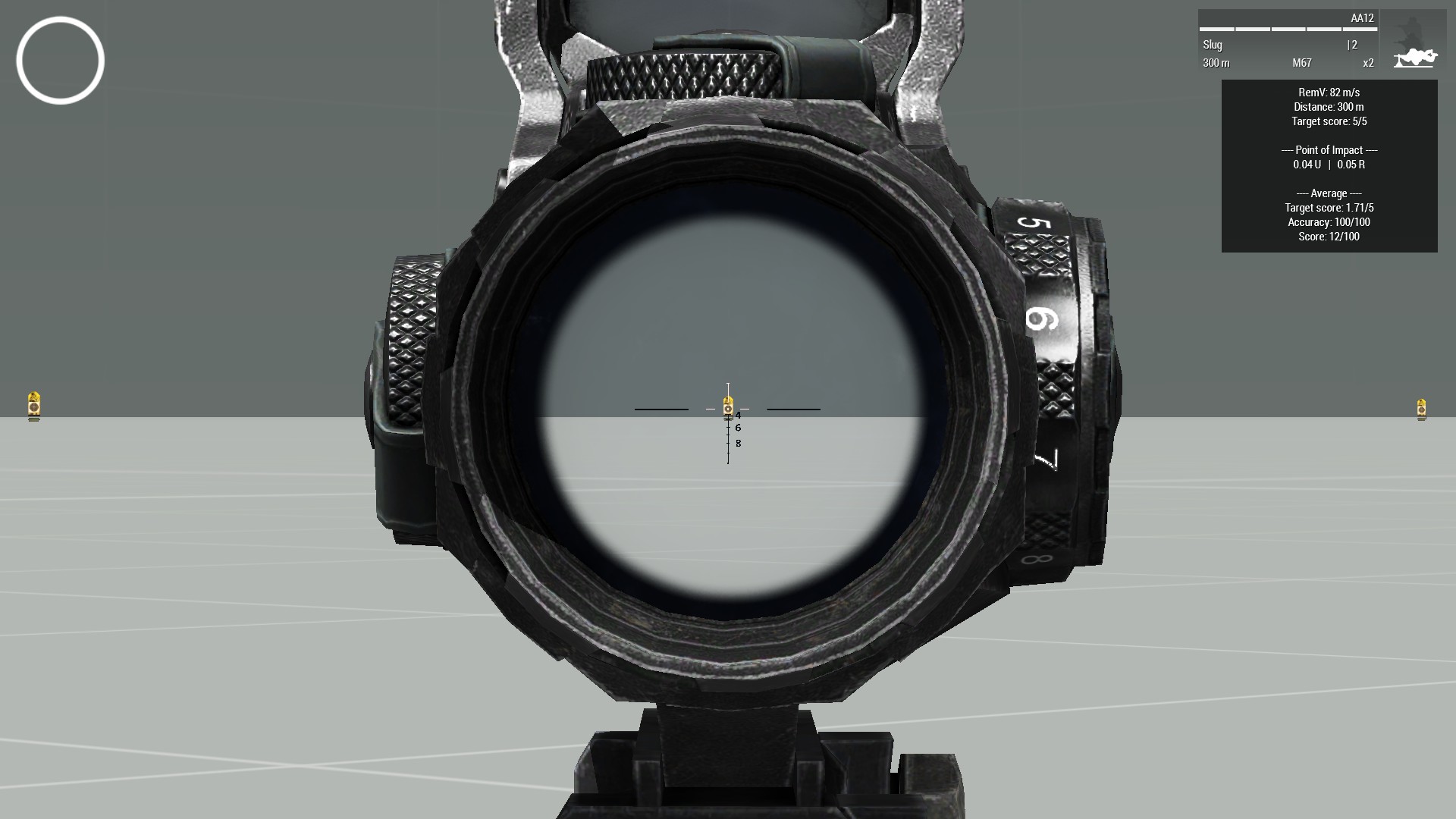

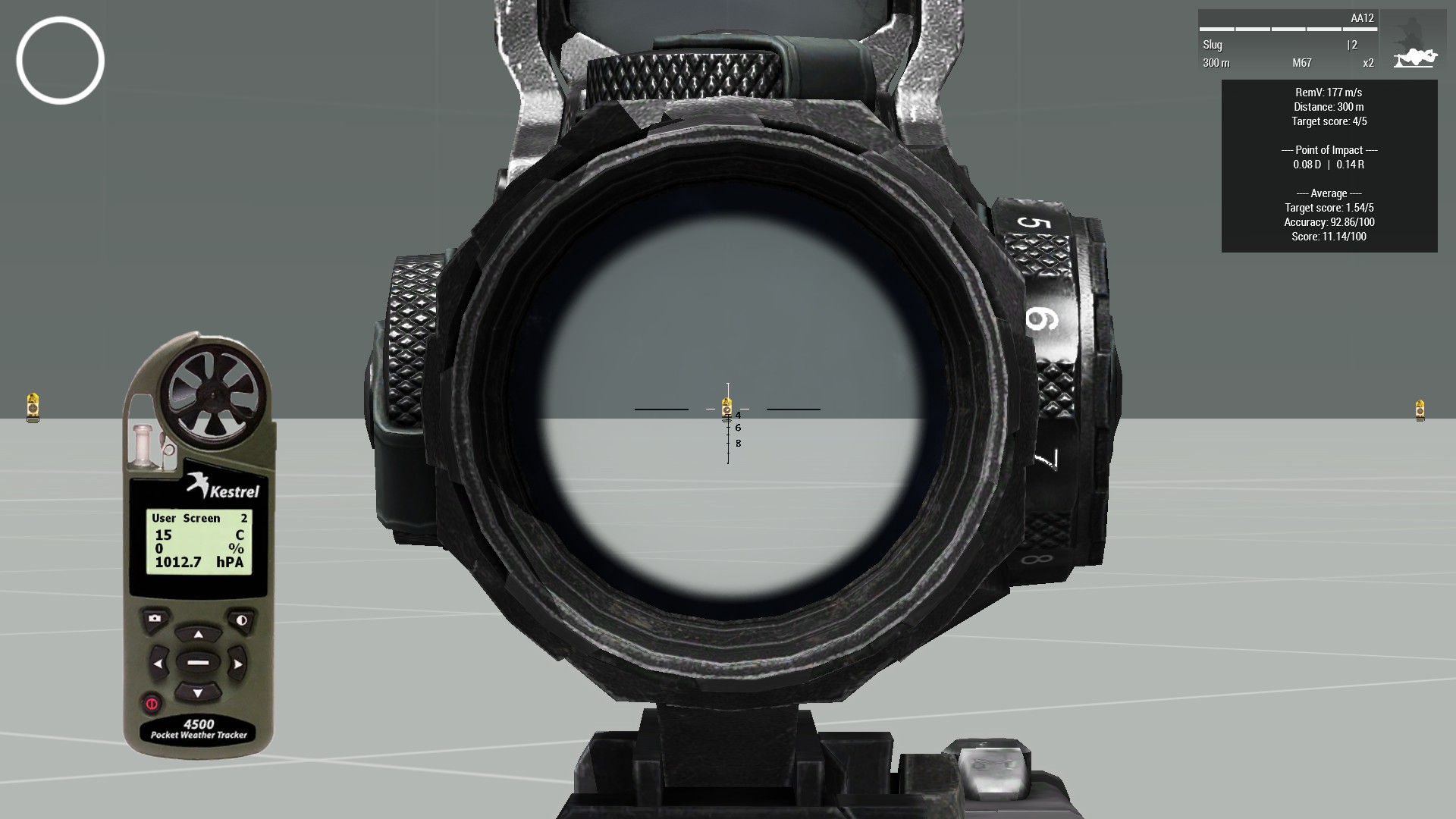

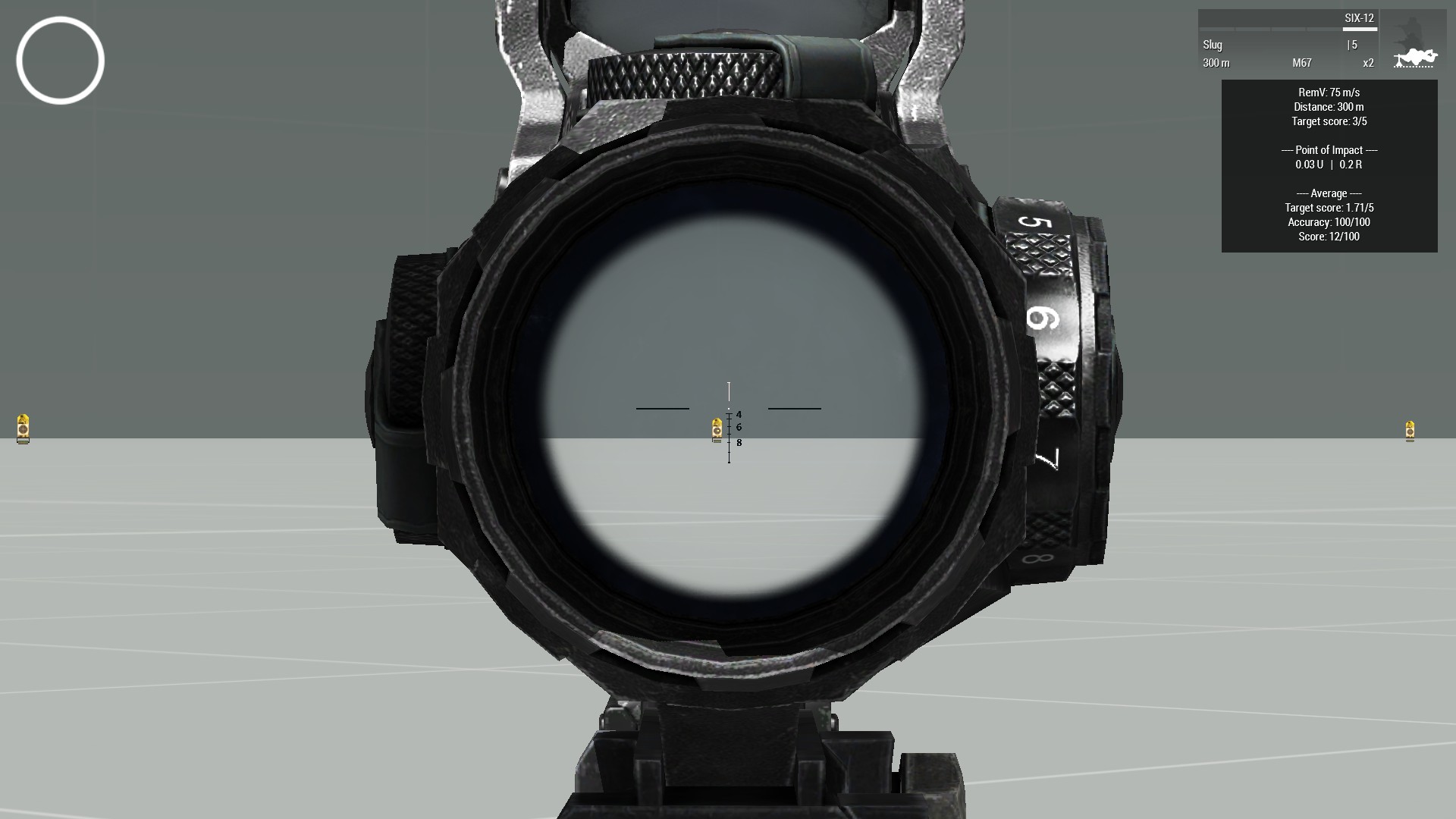

Some tests in-game with a dispersion = 0;, "Point of Impact" results top right of the screen:

• AA12 Slug, RC0, 300m: Default Ballistic, Advanced ballistics.
• SIX-12 Slug, RC0, 300m: Default Ballistic, Advanced ballistics.

[johnb432]

This PR should be split up, as it contains numerous changes not related to the title and that are very different.

[Laid3acK]

The title means what it means, vanilla slug fixed, i just added a new one.
It was not a problem to add new pellets in the past (default ballistic WS pellet MV also fixed with this PR).
Title updated.

[johnb432]

Remove #11280, has no effect on slug trajectory in-game and remove the possibility to play with Type 115 secondary weapon (50BW) with scope.
Update Western Sahara XMS SG shotgun realistic name SIX-12 (thanks to rekterakathom for his source).

These are out of scope for this PR.

[Laid3acK]

• The vanilla and WS underbarrel shotguns are the same, i just added realistic name for WS. For 12 lines, i will not make a new PR.
• Your PR solves nothing, so useless. Would be useful to check your own PR properly in-game before merging it.

I have no doubt about your programming knowledge (i'm completely incompetent for that) and i have absolutely anything against you, but about ballistics you have probably some things to learn.

How to remove johnb432 as reviewer of this PR ?

[BaerMitUmlaut]

Please tone down your language, there is no reason to get personal. Review comments aren't attacks on you and you shouldn't treat them as such.

[Drofseh]

This PR should be split up

I agree

[Laid3acK]

• It's not a question of language, attacks, ego or i don't know what. My priority is AB, i'm focused on it since the 2014 stand alone, before ACE3.
  I don't want AB becomes an Arcadish Ballistics with, for example, a "NoScopes" fix or a "Hardcoded 50m zeroing" simulation. Again, that solves or improves nothing, the proof with this PR. The correct small caliber projectiles trajectory in-game with the both ballistics is the most important for me.
• Ammo and magazines have an effect on vanilla game and WS, the second slug depends on the first.
  As you can see, it's not a basic PR and it's better to be seen in globality.
