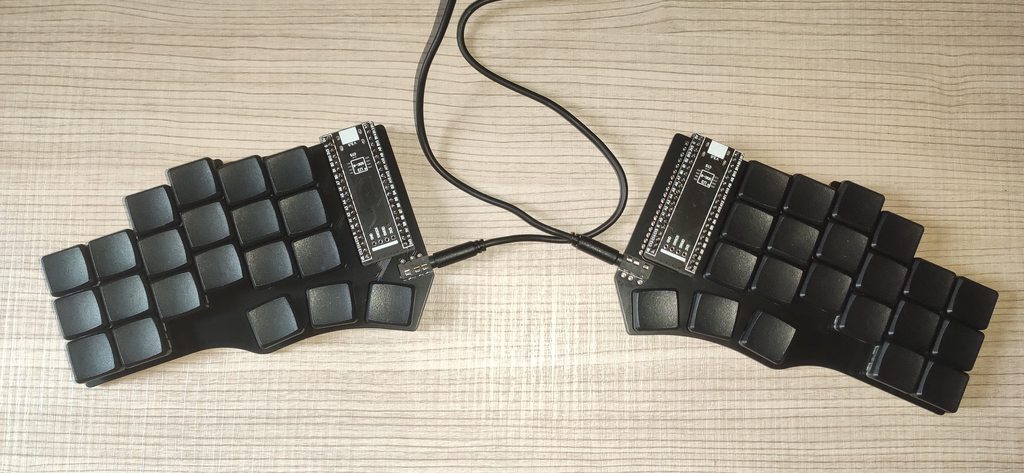

The Cantor keyboard is a 42 key diodeless split keyboard, designed with simplicity in mind. It is inspired on the popular corne, ferris and sweep keyboards, aiming to provide a more ergonomic (stronger column stagger) corne-like layout with a simple, easy to assemble and cheap design.
- Keyboard Maintainer: Diego Palacios
- Hardware Supported: Blackpill STM32F401
- Hardware Availability: https://github.com/diepala/cantor
Make example for this keyboard (after setting up your build environment):
make cantor:default
Flashing example for this keyboard:
make cantor:default:flash
See the build environment setup and the make instructions for more information. Brand new to QMK? Start with our Complete Newbs Guide.
Enter the bootloader in 3 ways:
- Bootmagic reset: Hold down the top left key and plug in the keyboard. For the right side, hold the top right key and plug the keyboard.
- Physical reset button:
- Press and hold the BOOT0 button.
- Press and release the NRST button.
- Release the BOOT0 button.
- Keycode in layout: Press the key mapped to
QK_BOOTif it is available
