FIX: Restrict carpet plot crown mask to BOLD coverage#3642
effigies merged 1 commit into
nipreps:masterfrom
lobennett:fix/crown-coverage-clip

Conversation

@lobennett

@lobennett lobennett commented Apr 29, 2026

Copy link
Copy Markdown
Contributor

Closes #3359.

Changes proposed in this pull request

  • Add _clip_mask_to_coverage helper in fmriprep/workflows/bold/confounds.py that
    restricts a mask to voxels with non-zero BOLD variance.
  • Add crown_clip Function node to init_bold_confs_wf and route it between
    subtract_mask and the three downstream consumers (outputnode.crown_mask,
    crowncompcor.mask_files, mrg_compcor.in3).

Why

When the brain mask is dilated past the BOLD coverage region, the resulting
crown includes voxels with no time-series content. These zero-variance rows are
grouped together by the carpet plot's row-sort and surface as a flat gray band:

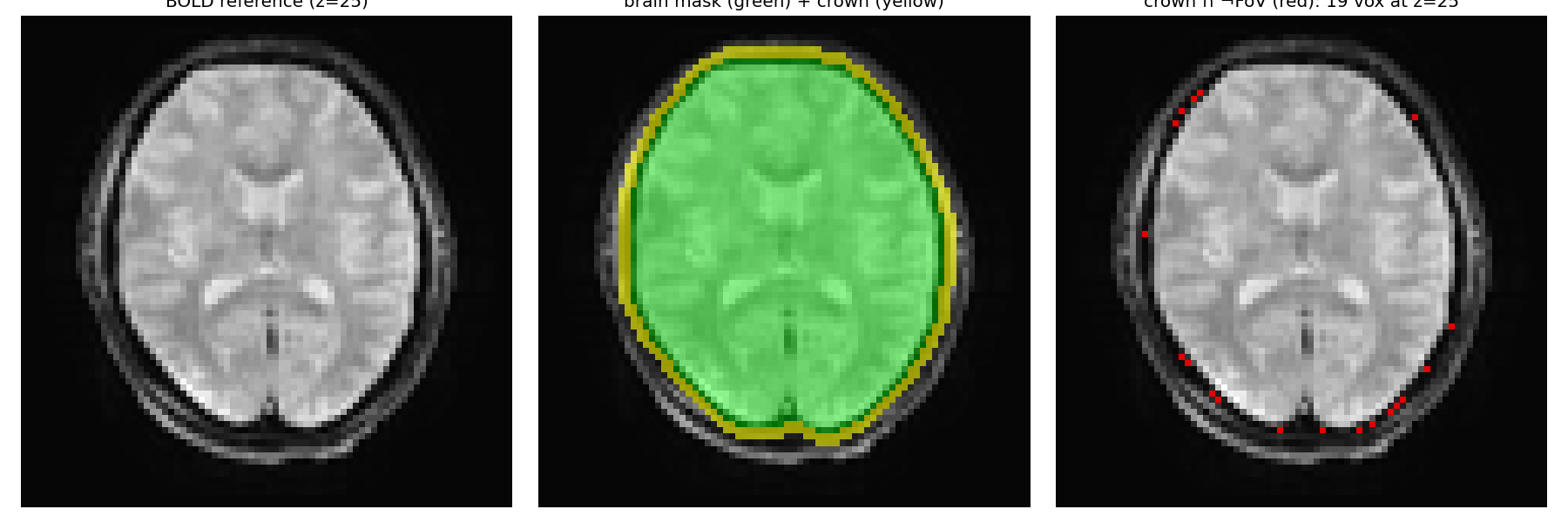

diagnostic

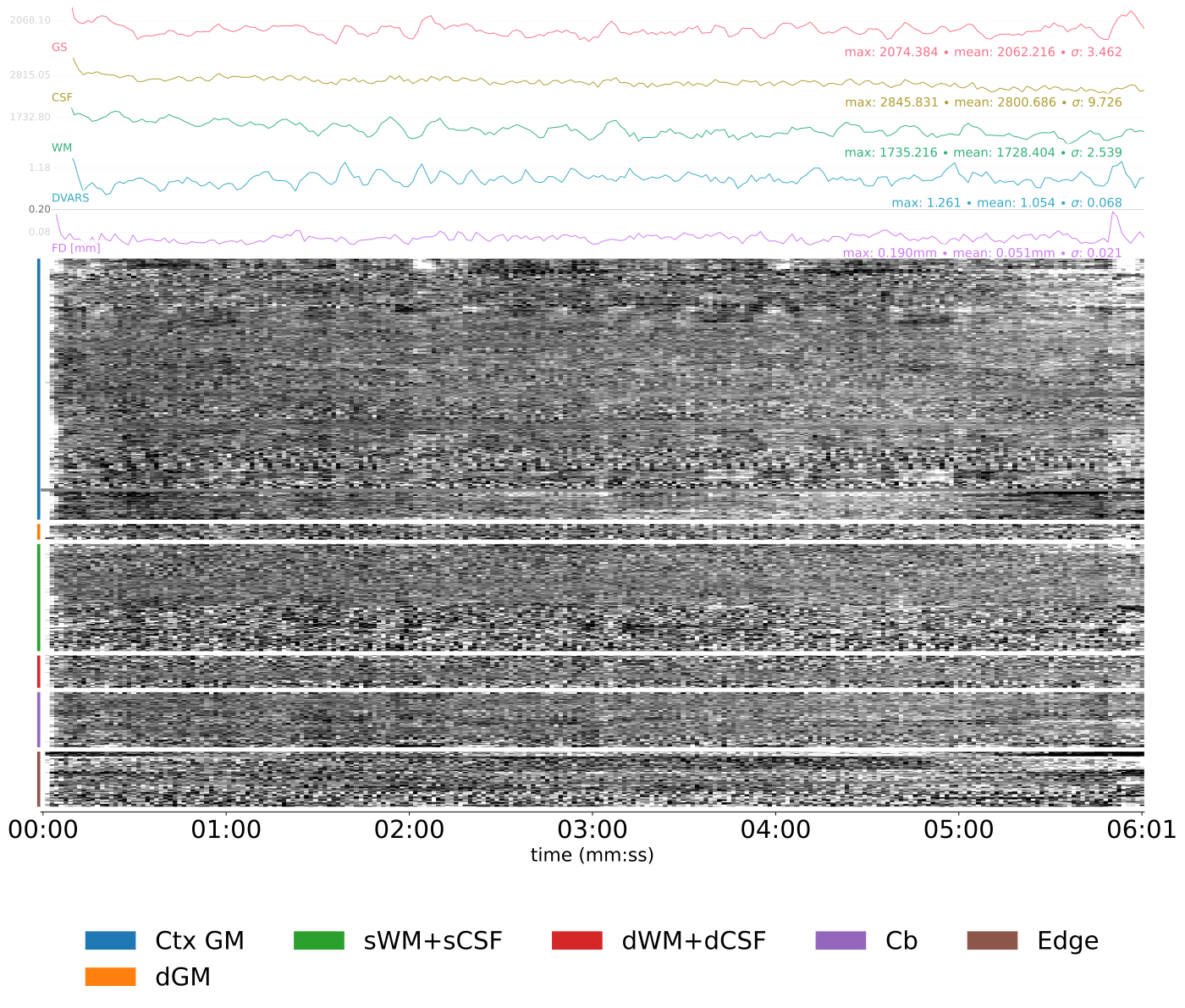

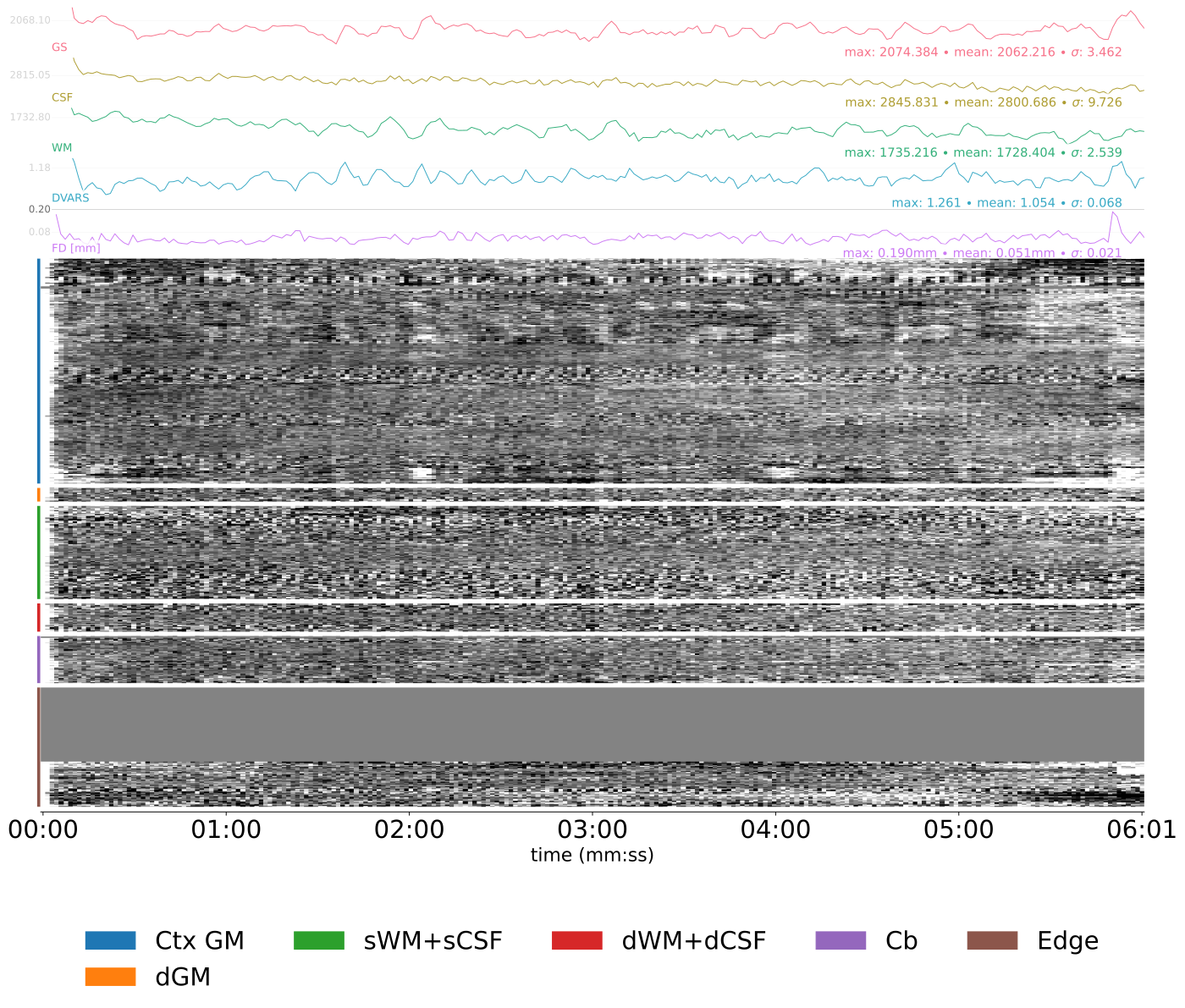

Before After
orig fix

This is a visualization-only change; edge_comp_* columns in
desc-confounds_timeseries.tsv are unaffected (zero-variance voxels contribute
nothing to PCA). See the issue thread for the verification.

@codecov

codecov Bot commented Apr 29, 2026

Copy link
Copy Markdown

Codecov Report

❌ Patch coverage is 15.38462% with 11 lines in your changes missing coverage. Please review.
✅ Project coverage is 74.41%. Comparing base (acdb0fd) to head (1b82ebc).
⚠️ Report is 9 commits behind head on master.

Files with missing lines Patch % Lines
fmriprep/workflows/bold/confounds.py 15.38% 11 Missing ⚠️
Additional details and impacted files
@@            Coverage Diff             @@
##           master    #3642      +/-   ##
==========================================
- Coverage   74.57%   74.41%   -0.16%
==========================================
  Files          62       62
  Lines        4975     4988      +13
  Branches      637      637
==========================================
+ Hits         3710     3712       +2
- Misses       1131     1142      +11
  Partials      134      134

☔ View full report in Codecov by Sentry.
📢 Have feedback on the report? Share it here.

🚀 New features to boost your workflow:
  • ❄️ Test Analytics: Detect flaky tests, report on failures, and find test suite problems.

@lobennett
lobennett force-pushed the fix/crown-coverage-clip branch from 4234079 to d5a0c10 Compare April 30, 2026 01:00
@lobennett
lobennett force-pushed the fix/crown-coverage-clip branch from d5a0c10 to 1b82ebc Compare April 30, 2026 02:45

@effigies effigies left a comment

Copy link
Copy Markdown
Member

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

LGTM, thanks.

@effigies
effigies merged commit 034f626 into nipreps:master May 13, 2026
21 of 23 checks passed
