Booking System Project

Kubernetes-based booking system application.

Overview

This application is designed for booking various services. Users can:

• Register and authenticate.
• Post services they offer.
• Search for available services.
• Schedule appointments for different services.

Tools Used

The project utilizes the following tools and technologies:

• Docker: For containerization of services.
• Terraform: For infrastructure automation.
• KIND: For creating and managing Kubernetes clusters locally.
• kubectl: For managing Kubernetes resources.
• Node.JS and Nest.JS: For authentication and backend services.
• React: For the frontend service.
• Prothemeus and Grafana: For monitoring.

Preview

Screnshots

HomePage (Categories)	Services
Service Booking	Booking Confirmation
Add a New Service	User Profile (Bookings)

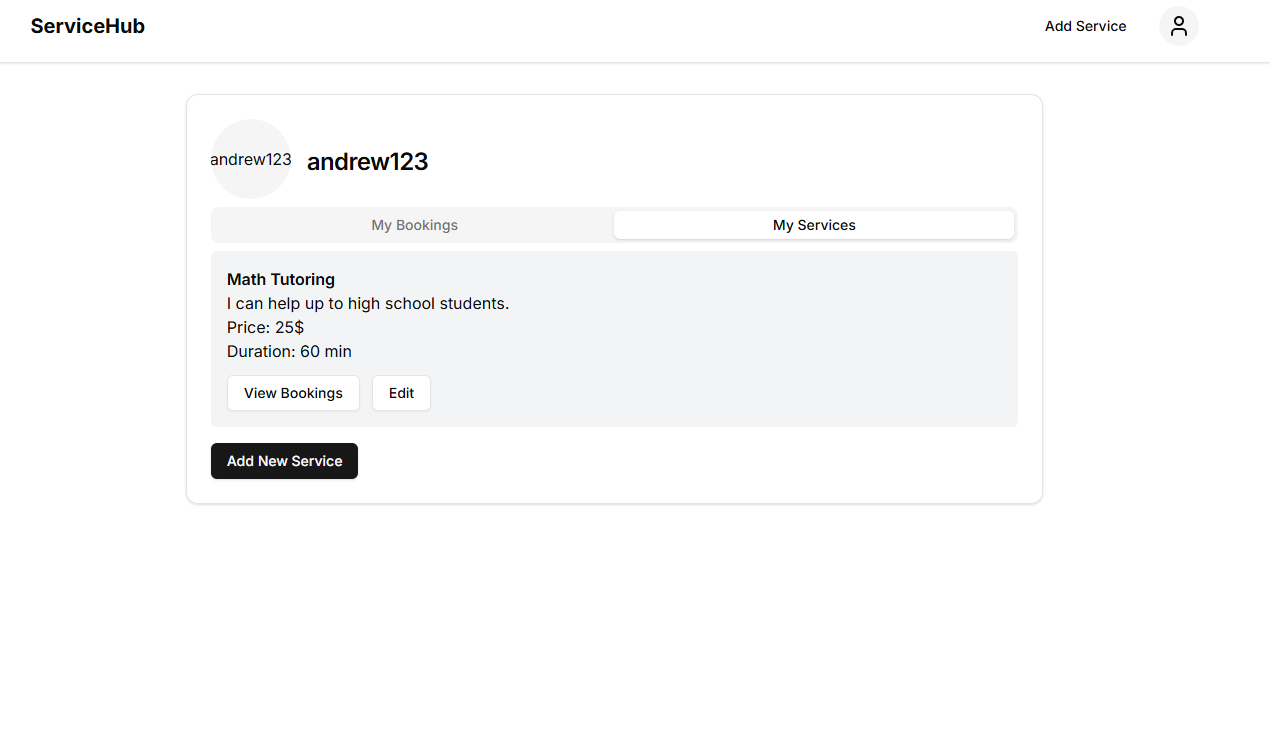

User Profile (Services)	View Booking (and Actions)

Project Structure

Root Directory

• services/: Contains three subdirectories:
  • auth: Authentication and authorization microservice with a Dockerfile.
  • backend: Backend logic microservice with a Dockerfile.
  • frontend: Frontend logic microservice with a Dockerfile.
• monitoring/: Contains files for monitoring and observability tools like Prometheus and Grafana.

Kubernetes Resources

Namespaces

• auth: For the authentication service.
• backend: For the backend service.
• frontend: For the frontend service.
• database: For the database and Adminer.
• monitoring: For monitoring services like Prometheus and Grafana.
• portainer: For managing Kubernetes resources.

Deployments

• Auth Service:
  • Namespace: auth
  • Replicas: 2
  • Image: auth-service:latest
• Backend Service:
  • Namespace: backend
  • Replicas: 2
  • Image: backend-service:latest
• Frontend Service:
  • Namespace: frontend
  • Replicas: 2
  • Image: frontend-service:latest
• Database:
  • Namespace: database
  • Replicas: 1
  • Image: postgres:latest
• Adminer:
  • Namespace: database
  • Replicas: 1
  • Image: adminer:latest
• Prometheus:
  • Namespace: monitoring
  • Replicas: 1
  • Image: prom/prometheus:latest
• Grafana:
  • Namespace: monitoring
  • Replicas: 1
  • Image: grafana/grafana:latest
• Portainer:
  • Namespace: portainer
  • Replicas: 1
  • Image: portainer/portainer-ce:2.21.5

Services

• ClusterIP Services:
  • Auth Service: Port 80 -> 3000
  • Backend Service: Port 80 -> 3100
  • Frontend Service: Port 80 -> 3200
  • Database: Port 5432 -> 5432
  • Adminer: Port 80 -> 8080
  • Prometheus: Port 9090 -> 9090
  • Grafana: Port 3000 -> 3000
  • Portainer: Ports 9000, 9443, 30776

Monitoring and Management Tools

• Portainer: Deployed for managing Kubernetes resources.
• Prometheus: Configured for scraping metrics with a prometheus.yml configuration.
• Grafana: Used for visualizing metrics.
• Adminer: Database management tool for PostgreSQL.

Technologies Used

• Kubernetes (Managed using Kind and Terraform)
• Docker (Containerization)
• Nest.js (Backend)
• Next.js (Frontend)
• PostgreSQL (Database)
• Prometheus and Grafana (Monitoring)
• Portainer (Cluster management)
• Adminer (Database management)

How to Run

1. Setup Kubernetes Cluster:

   • Use kind-cluster-config.yaml to create a cluster with 1 control plane and 2 worker nodes.

2. Build Docker Images:

   • Navigate to each project folder in services/ (auth, backend, frontend).
   • Build the Docker images locally using the command:

     docker build -t <image-name>:<tag> .

   • Push the images to your local Docker registry or a container registry accessible by the Kubernetes cluster.

3. Deploy Services:

   • Apply all namespace, deployment, and service configurations from k8s/.

4. Setup Monitoring:

   • Apply configurations from monitoring/ to deploy Prometheus and Grafana.

5. Access Services:

   • Use kubectl port-forward or NodePort configurations to access services like Portainer, Grafana, Adminer, etc.

Extra

Configure Terraform

• cd ./terraform
• terraform init
• terraform plan
• terraform apply verificare: - kubectl get nodes

Configure portainer:

• kubectl apply -f ./monitoring/portainer.yaml
• Expose portainer to local machine: kubectl port-forward service/portainer 9000:9000 -n portainer
• Service available at localhost:9000 username: admin password: adminadmin1234

Configure database:

• kubectl apply -f k8s/namespaces/db-namespace.yaml
• kubectl apply -f k8s/deployments/db-deployment.yaml
• kubectl apply -f k8s/services/db-service.yaml

Configure adminer:

• kubectl apply -f k8s/deployments/adminer-deployment.yaml
• kubectl apply -f k8s/services/adminer-service.yaml
• kubectl port-forward service/adminer 8080:80 -n database

Configure auth service

• cd ./services/auth

• docker build -t auth-service:latest .

• kind load docker-image auth-service:latest --name booking-app-cluster

• kubectl apply -f k8s/namespaces/auth-namespace.yaml

• kubectl apply -f k8s/deployments/auth-deployment.yaml

• kubectl apply -f k8s/services/auth-service.yaml

• To expose the auth service to local machine: - kubectl port-forward service/auth-service 8090:80 -n auth

• service will be exposed on http://localhost:8080/

Configure backend service

• cd ./services/backend

• docker build -t backend-service:latest .

• kind load docker-image backend-service:latest --name booking-app-cluster

• kubectl apply -f k8s/namespaces/backend-namespace.yaml

• kubectl apply -f k8s/deployments/backend-deployment.yaml

• kubectl apply -f k8s/services/backend-service.yaml

• To expose the auth service to local machine: kubectl port-forward service/backend-service 8091:80 -n backend

• service will be exposed on http://localhost:8090/

Configure frontend service

• cd ./services/frontend

• docker build -t frontend:latest .

• kind load docker-image frontend:latest --name booking-app-cluster

• kubectl apply -f k8s/namespaces/frontend-namespace.yaml

• kubectl apply -f k8s/deployments/frontend-deployment.yaml

• kubectl apply -f k8s/services/frontend-service.yaml

• To expose the auth service to local machine: kubectl port-forward service/frontend 8092:80 -n frontend

Configure monitoring:

prometheus url: http://prometheus.monitoring.svc.cluster.local:9090

• kubectl apply -f monitoring/monitoring-namespace.yaml

• kubectl apply -f monitoring/prometheus-serviceaccount.yaml

• kubectl apply -f monitoring/prometheus-rbac.yaml

• kubectl apply -f monitoring/configmaps/prometheus-config.yaml

• kubectl apply -f monitoring/deployments/prometheus-deployment.yaml

• kubectl apply -f monitoring/services/prometheus-service.yaml

• kubectl apply -f monitoring/deployments/grafana-deployment.yaml

• kubectl apply -f monitoring/services/grafana-service.yaml
